Description
Premium-quality through bolts for fixing in non-cracked and cracked concrete
- Torque-controlled expansion anchors for pre-, push-through and distance installations.
- When torque is applied the expansion clip expands developing frictional grip with the drill hole walls.
- Anchor diameter and max. fixture thickness marked on the body.
| Range | • Available Sizes: M6 to M20 • Special sizes can be ordered upon request |
|---|---|
| Technical Features | Properties: Nut and washer Material: Steel, zinc plated Suitable conditions: Dry indoor |
| Application | • Steel structures • Column base plates • Seatings • Barriers • Cable racks • Handrails • Ladders • Façade systems |
| Base Materials | APPROVED FOR • Cracked concrete • Non-cracked concreteALSO SUITABLE FOR • Natural stone • Solid clay brick |

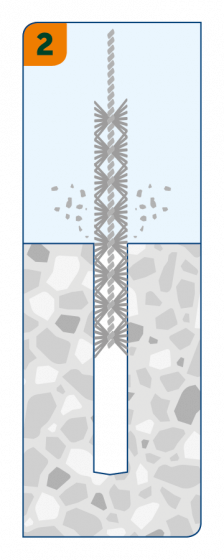

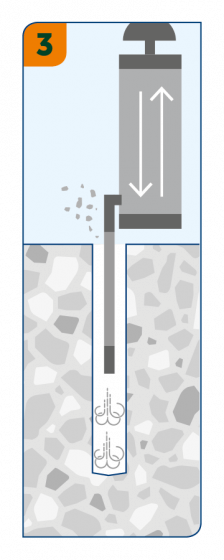

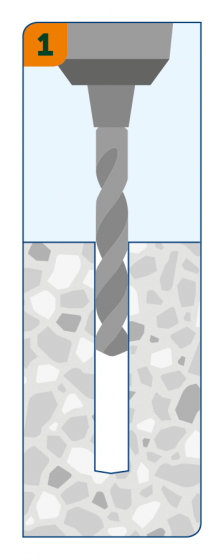

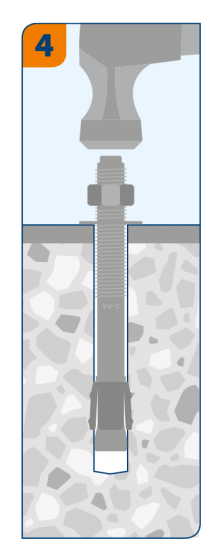

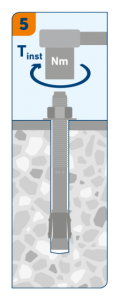

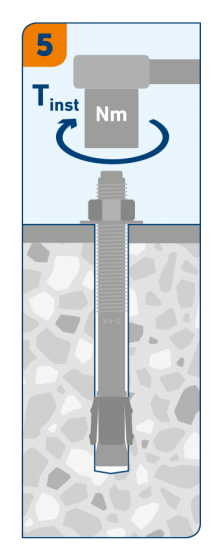

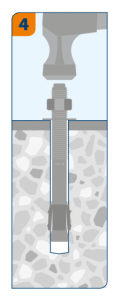

Installation
Approvals / Certificates
